Three-phase variable frequency drive AF1130-3 series
integratedfully integratedfor asynchronous motors

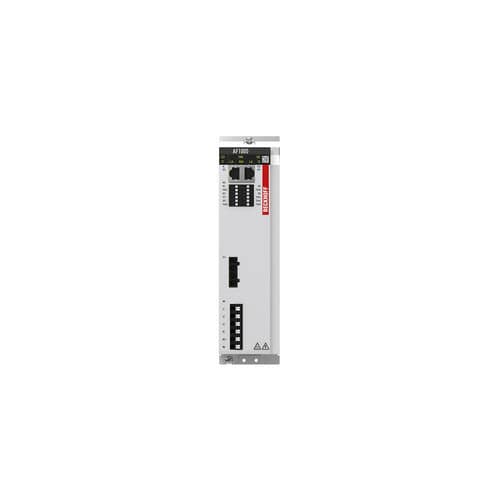

Three-phase variable frequency drive - AF1130-3 series - Beckhoff Automation - integrated / fully integrated / for asynchronous motors
Three-phase variable frequency drive - AF1130-3 series - Beckhoff Automation - integrated / fully integrated / for asynchronous motors
Three-phase variable frequency drive - AF1130-3 series - Beckhoff Automation - integrated / fully integrated / for asynchronous motors - image - 2
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
three-phase
Mounting
integrated, fully integrated
Applications
for asynchronous motors, for synchronous motor
Other characteristics
compact, EtherCAT
Power

3 kW

Description

The AF1000 economy variable frequency drives are a cost-efficient series for basic drive tasks. The AF1130-3xxx single-axis module is available in the higher power range with a rated output power of 3 kW with a three-phase supply of 3 x 208…480 V AC. Despite its compact dimensions, it still incorporates an integrated power supply for 24 V DC, DC link capacitors, and a ballast circuit. The power supply generates the control voltage from the DC link voltage. The devices support TwinSAFE as an option in order to implement the STO/SS1 drive-integrated safety functions. The highly efficient AF1000 variable frequency drives are fully integrated into the TwinCAT system via EtherCAT, ensuring that commissioning, operation, and diagnostics are made easy. The TwinCAT 3 Drive Manager 2 serves as commissioning tool. Thanks to the structured design and the wide range of functions, commissioning of the axis is simple and intuitive. Safety projects can be created quickly and easily with the TwinCAT 3 Safety Editor. The TwinSAFE Loader/User is also available as additional support.
