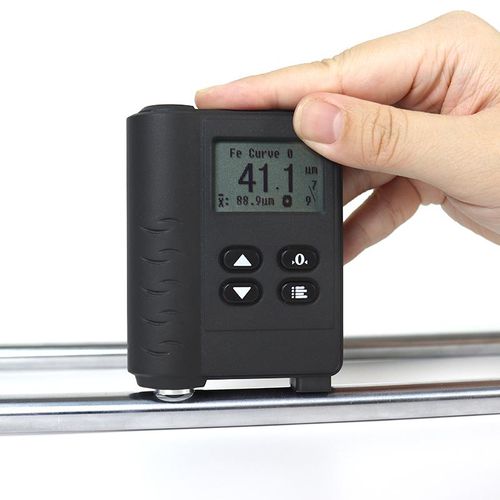

Stationary thickness gauge ACT210A
coatingeddy currentmagnetic induction

stationary thickness gauge
stationary thickness gauge
Add to favorites
Compare this product


Characteristics

Type
stationary
Applications
coating
Technology
eddy current, magnetic induction
Calibration
automatic calibration
Other characteristics
handheld
Measuring range

Min.: 0 µm

Max.: 1,500 µm

Description

Dual Technology Features Automatic Selection of Magnetic Induction or Eddy Current Measurement Techniques Features: 1. Non-magnetic coatings(e.g. paint, zinc) on steel 2. Insulating coatings(e.g. paint)on no-ferrous metals 3. No-ferrous metals coatings on insulating substrates 4. Menu operation system 5. Two measuring mode: CONTINUE and SINGLE mode 6. Two working Mode: DIRECT and GROUP mode · Very compact size with FN integrated probe. · Magnetic induction method (ISO 2178, ASTM D7091), Measurement of non-magnetic coatings on magnetic substrates. Also eddy current thickness measurement method. · Quick one-hand operation. Place instrument on specimen and see the measured value. · Ready to measure immediately without calibration. · Easy to perform zero-point correction provides correct measurement results for measuring applications with little changes in shape and substrate material. · The one-point calibration function allows for an adaptation in cases of severe changes in shape or substrate material. · Data transmitting to PC via USB cable. · Statistic function allows for evaluation of a measurement series and display of the most significant characteristic statistical values. Test Method - Magnetic induction and Eddy Current Measuring Range - 0~1500µm (0 ~60 mil) Resolution - 0 ~ 999µm: 0.1µm, ≥1000µm: 1µm Accuracy - 0 ~ 100µm: ±1.5µm , 101 ~ 1500µm: ≤ ±1.5 % Data Memory - 1500 readings Display - Matrix LCD with Backlight Power - 1.5V*3 (AAA alkaline batteries) Printer - Wireless Mini-printer(optional) Dimensions - 88 X 67 X 30 mm Weight - 120gr
