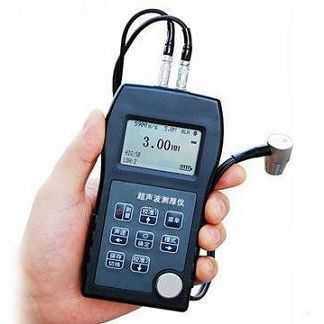

Ultrasonic thickness gauge AUT600
metalglassrubber

ultrasonic thickness gauge
ultrasonic thickness gauge
Add to favorites
Compare this product


Characteristics

Applications
metal, glass, rubber, plastic
Technology
digital display, ultrasonic
Other characteristics
handheld, programmable
Measuring range

Max.: 500 mm (19.69 in)

Min.: 0.75 mm (0.03 in)

Description

Features: • Available for gauging various materials such as metal, glass, plastic, rubber and etc. • High measurement accuracy and wide range gauge applications • Suitable for pipe gauging. • Whole range transducer models are available for almost all kinds of application, including coarse grain material gauging and high temperature applications (Max. temperature up to 300℃). • Adaptive probe function built in: Patent technology of automatic probe recognition: Automatically recognizing for probes allowing the gage to match with probes made from various probe manufacturers. • Power on automatic testing function contributing to measurement accuracy increasing. • Auto power off detection and customizing power off configuration. • Probe Zero function, Sound Velocity Calibration function. • 9 velocities built in and programmable. • Several practical measurement modes available: Standard Mode, Scanning Mode, Difference Mode, Average Mode, Maximum limitation Alert Mode, High Temperature Mode(Should be matched with high temperature probe). • 8 button keyboard designing for convenient shortcut operations for Probe-Zero function, One-Point and Two-Point Sound-Velocity-calibration, as well as numerical adjusting with direction key control. • Automatic Data Storage function: group data storage mode, and storage capacity for each group optional. • Large data storage capacity, Max. up to 2000 groups. • Special function of SW6U: USB data interface communication, easily accomplishing data transferring with PC and outputting data with “.txt” • Metric and imperial free convertible.
