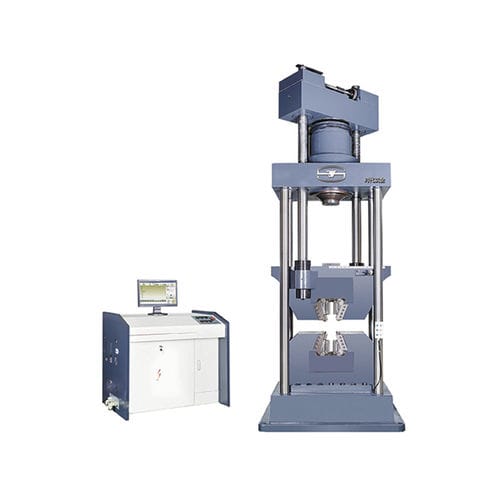

Compression testing machine WAW-A Series

tensilebendingshearing

WAW-A Servo Hydraulic Tensile Testing Machine is mainly used for tensile test with high efficiency requirement. Equipped with relevant fixtures, this machine can also be used for compression, bending and shearing tests. Constant strain, Constant stress and constant displacement test are available. Strain velocity, stress velocity and displacement velocity conform to the requirement of GB, ASTM, DIN, ISO, JIS, BS etc. metal tensile testing standards. It is an ideal equipment for tensile test of metal rod, board, screw, steel strand (with special fixture) etc. material with high stiffness. Features ●Adopts four columns load frame with oil cylinder at the top, tension space is locates at the low space, compression and bending are located at the up space. ●Lower jaw seat fixed at the bottom. Upper jaw is connected with crosshead through screw column. ●Motor rotates by worm and worm wheel, transmission by screw nut screw column, to realize adjustment of testing space. ●Adopts hydraulic clamping way ●TIME own controller and software
