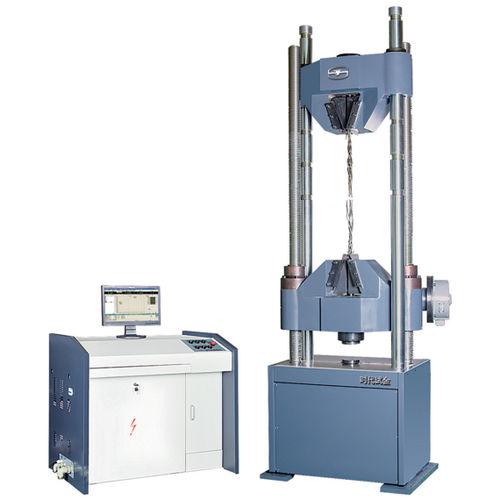

Universal testing machine WAW-600L

tensioncomputer-controlledfor materials

Features ●WAW-600L Computer Display Hydraulic Steel Strand Testing Machine is mainly used to execute the tension test for steel strand wires. Attached with simple accessories and devices, it can conduct compression and other tests. ●The oil cylinder is at the bottom of the load frame. Tension space is at the upside and compression & bending spaces are between lower crosshead and working table. It is adopting oil hydraulic power to push the piston in the oil cylinder to provide loading force. The lower crosshead is driven by the motor and gear inside it to realize the adjustment of testing space. The leading screws are fixed into the machine seat and never turn during the space adjusting & testing to guarantee the machine stability and longer life span. Standards In accordance with or exceed the requirements of the ISO6834. Applications It is widely used in different steel works, engineering areas, quality control department, universities and institutes as well as other areas and works.
