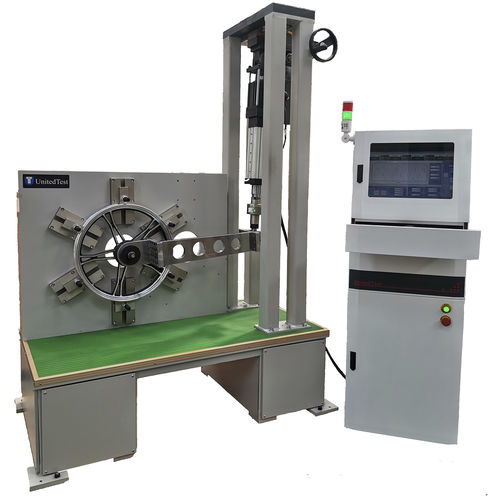

Wheel rim testing machine UT1011

torsiontorquefatigue

Wheel Rim Torsion Fatigue Testing Machine UT1011 rim torsion fatigue dynamic test system (torque bearing capacity tester) achieve tensile fatigue and reverse fatigue on a machine. This series of products is suitable for the dynamic and static mechanical properties of materials and small components, including the tension, compression, torsion, low cycle and high-cycle fatigue of materials and components. The high and low temperature chamber can be equipped with high and low temperature mechanical tests. Fix alloy rim flange to holder and impact a torque as defined like above on alloy rim in symmetric direction through wheel hub’s contact surface. Arm length should be equal to radius of the smallest tyre in line with alloy rim Fix alloy rim to holder through wheel hub’s contact surface and impact a torque on alloy rim by a doughnut ring tightened to alloy rim. The number of torque impacts is not under 105. Standard: ISO 3006 Road vehicles — Passenger car wheels for road use — Test methods ISO 8644: 2006 Motorcycles — Light-alloy wheels — Test method JASO T 203-85, GB/T22435-2008
