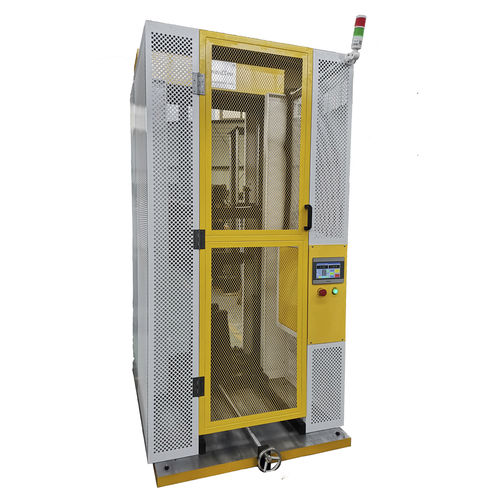

Impact testing machine UT1013

automaticfor motorcycles wheelsdouble

UT1013 Radial double hammer impact test machine for motorcycle light alloy wheel is used to simulate the impact of the wheels during the driving process through ditches and other undulating road surfaces, the test machine impact energy can be adjusted (by adjusting the weight and impact height to achieve), the system configuration adjusts the height of the screw and servo motor control height changes, high-precision encoder real-time display impact height, (after the input wheel diameter and impact height before the experiment, the system automatically adjusts to the preset position, the system automatically adjusts to the preset position, the system is a double-acting mechanism, the system is stable and reliable. (The protective door cannot be tested without closing, and the test cannot be carried out without lifting the insurance pin). Main advantage: 1, The test machine is mainly composed of the main host, parameter measurement display unit, strong electrical control unit, test accessories and so on. 2, the host using a double column frame structure, the motor on the upper, through the servo motor to drive the screw rotation, thereby driving the lifting device up and down, the built-in photoelectric encoder accurately measure the height value, so as to ensure that the impact energy is accurate and reliable. Perfect measurement and control software, set the hub diameter and impact energy, the system automatically adjusted to the specified position.
