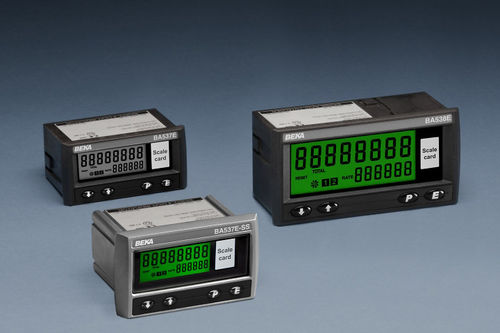

Pulse totalizer counter BA5 E series

digitalelectronicrugged

-Reliable and cost effective -Proximity detector, magnetic pick-off, voltage pulse, or switch contact input. -Separate rate and total displays -Lineariser -Two input model -Rugged Stainless Steel model for use in severe environments -BA538E has isolated synchronous pulse output as standard -Optional: Internally powered display backlight Isolated Alarms Isolated 4/20mA output BA537E and BA537E-SS isolated synchronous pulse output Product details Easy to use, general purpose rate totalisers that can process and simultaneously display rate of flow and total flow from the pulse output of most flowmeters. This range of reliable cost effective instruments incorporates 16 segment linearisation for maximum accuracy and offers a choice of enclosure sizes and materials to suite most applications. Accessories, include a display backlight, isolated dual alarms, isolated 4/20mA output for BA537E and BA537E-SS and isolated synchronous pulse output. Rate totalisers can be supplied configured and fitted with a customer specified printed scale card showing the units of measurement for no additional charge. Specified tag or application information can also be printed onto the rear of the instrument.
