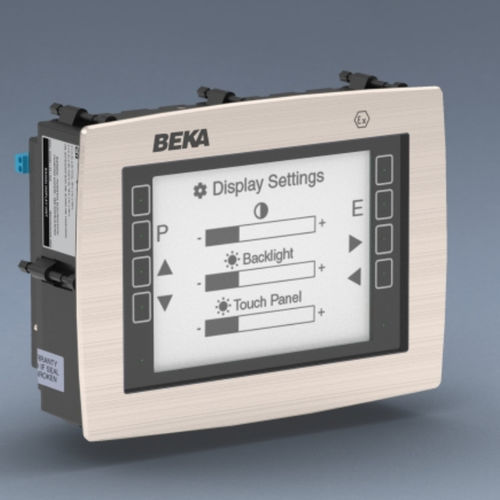

Color display BA3101

320 x 2407"control

-Economical solution for Zone 1 applications -7 inch Backlit operator screen -Accommodates up to 7 plug-in input and output modules. -CODESYS® runtime industry standard PLC -8 touch buttons with tricolour annunciators. -IP66 Toughened glass and stainless steel front panel Product details Pageant is an intrinsically safe combined PLC and local operator panel with provision for plug-in input and output modules. It may be safely installed in Zones 0, 1, 2, 20, 21 or 22 hazardous areas and can economically monitor and control hazardous area equipment such as mud pumps, pharmaceutical coating machines and flammable liquor stills. Pageant can operate alone or as part of an integrated control system. Designed with the help of users Pageant features a seven inch back-lit operator display which is readable in all lighting conditions. Up to seven plug-in analogue or digital input and output interface modules can be accommodated plus a CPU module with an IEC 61131 compliant CODESYS® PLC and optional external communications. Operator inputs are made via eight touch buttons each with a programmable tricolour annunciator.
