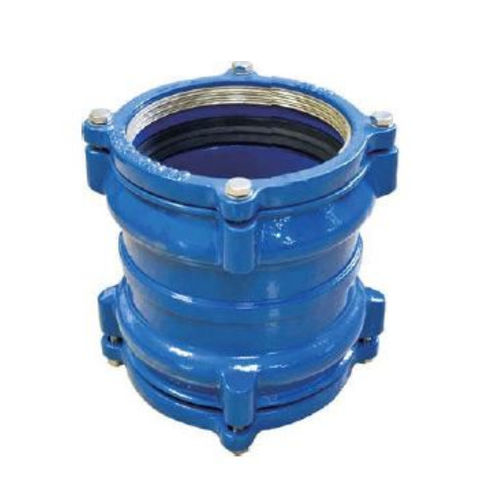

Epoxy pipe coupling 1800ID series

coatingEPDMfor PE pipes

Coupling for PE pipes SERIES 1800ID This generation of couplings and flange adaptors combines a leakproof seal with proper restraint preventing pipe pull-out. Series 1800 & 2800 was designed to obtain maximum pipe restraint with the least possible weakening of the pipe. Its unique gasket with metal inserts only penetrate to 1/3 of the perimeter of the pipe, unlike other systems which act on the whole pipe perimeter, breaking fibres all around and thereby weakening the pipe. Due to this superior design feature and the high quality components, Series 1800 / 2800 is a highly reliable solution for joining PE pipes. Body: EN-GJS-500-7 End rings: EN-GJS-500-7 Gasket: EPDM [EN681/1] Grip ring: EPDM & Bichromated Steel Flange drilling: PN10/16 drilled (ANSI150 on request) Standard coating: Epoxy 200μ minimum DFT Max WP: 16 bar [water] OPTIMAL RESTRAINT - Proper restraint, without weakening the pipe. RELIABLE & FAST INSTALLATION - Restraint & sealing efficiently obtained. DURABLE - High quality corrosion resistant materials.
