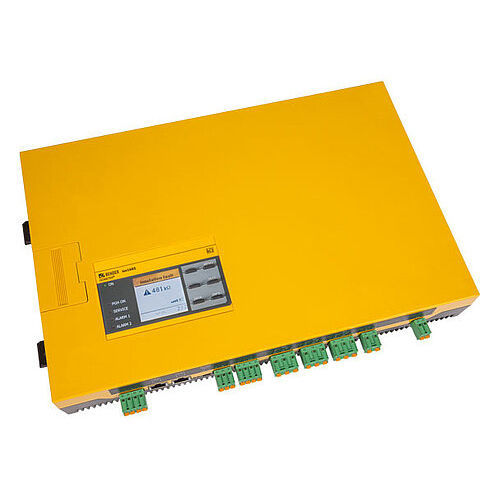

AC/DC insulation monitor ISOMETER® isoHR1685DW–925

DCRS485Modbus RTU

Insulation monitoring device for mobile, insulated elevating work platforms Protection when working on overhead lines under voltage Continuous insulation monitoring during operation Storage of data for verification of insulation condition Monitoring of ungrounded work platforms in the chemical industry The ISOMETER® isoHR1685DW-925 is designed for insulation monitoring on elevating work platforms/overhead catenary vehicles. Voltages of up to 1500 V make working on live overhead lines for local transport vehicles particularly hazardous. To protect operatives, overhead catenary vehicles are equipped with 2 insulation levels. Pollution, ageing or damage to these insulation levels can cause the current to be perceptible to people and presents an electrocution hazard. The isoHR1685DW-925 makes a valuable contribution to improving the safety of work carried out on live systems of this kind. The device is installed in the vehicle, where it continuously monitors the insulation level and notifies operatives immediately whenever defined insulation levels drop below defined thresholds during the approach, and both before and during maintenance work. Both insulation levels can be monitored. Features ISOMETER® for mobile, insulated elevating work platforms Continuous monitoring of both insulation levels on elevating work platforms, also during operation Storage of data for verification of insulation condition. Where necessary, provision of documentary verification following a electrical accident Graphical representation of the insulation resistance over time (isoGraph)
