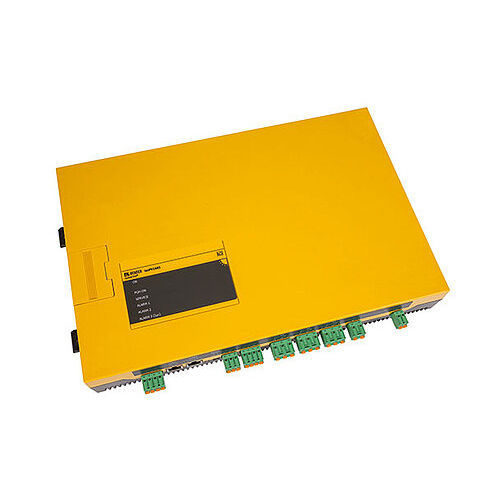

AC/DC insulation monitor ISOMETER® isoPV1685RTU/isoPV1685P

DCwith insulation fault locationModbus

Application photovoltaic systems up to AC 1000 V/DC 1500 V Separately adjustable response values 200 Ω…1 MΩ Automatic adaptation to the system leakage capacitance up to 2000 μF Interface selectable RS-485 or Modbus The device is used for insulation of large photovoltaic systems up to AC 1000 V/DC 1500 V designed as IT systems. The measurement method specially developed for slow voltage fluctuations (MPP tracking) monitors the insulation resistance even in systems equipped with large solar generator panels where extremely high system leakage capacitances against earth exist due to interference suppression methods. Adaptation to system-related high leakage capacitances also occurs automatically. The device generates locating current pulses required for insulation fault location. That allows the localisation of the insulation fault using permanently installed or mobile insulation fault locators. Features Only device version isoPV1685P provide a locating current injector. Insulation monitoring of large-scale photovoltaic systems Measurement of low-resistance insulation faults Separately adjustable response values Ran1 (alarm 1) and Ran2 (alarm 2) (both 200 Ω…1 MΩ) for prewarning and alarm. Ran1 ≥ Ran2 applies. Automatic adjustment to high system leakage capacitances up to 2000 μF, selectable range Connection monitoring of L+, L- for reverse polarity (DC only)
