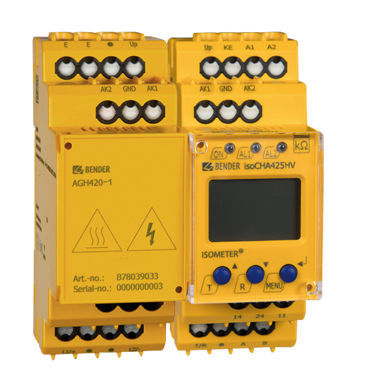

DC insulation monitor ISOMETER® isoCHA425HV

RS485Modbus RTU

Switchable between CCS (Combined Charging System) and CHAdeMO Nominal voltages up to DC 1000 V Detection of symmetrical and asymmetrical insulation faults Electrically isolated Modbus RTU interface Display of the fault location (DC+/DC/balanced) The ISOMETER® isoCHA425HV in combination with the AGH420-1/AGH421-1 coupling device monitors the insulation resistance RF for DC fast charging stations according to the CHAdeMO standard or according to the Combined Charging System (CCS) for nominal system voltage ranges between DC 0 V and 1000 V. In order to meet the requirements of the applicable standards, customised parameter settings must be made on the equipment in order to adapt it to local equipment and operating conditions. Please heed the limits of the range of application indicated in the technical data. Any other use or a use that goes beyond this constitutes improper use. Features Monitoring of the insulation resistance RF of DC charging stations according to CHAdeMO standard or Combined Charging System (CCS) CHAdeMO (Mode CHd and CHA): – Maximum system leakage capacitance 1.6 μF per conductor – Detection of insulation faults in the system voltage range 50 V to 1000 V – One-pole insulation faults RFU: RFU≤ 100 kΩ: Response time ≤ 1 s, 100 kΩ 160 kΩ (200 kΩ): no detection (Deactivation) (only CHd) CCS (Mode dc): – Detection of insulation faults up to 2 MΩ – Maximum system leakage capacitance Ce: 20 μF – Response time tan at Ce ≤ 5 μF or RF ≤ 100 kΩ: ≤ 10 s Measurement of the system leakage capacitance Ce
