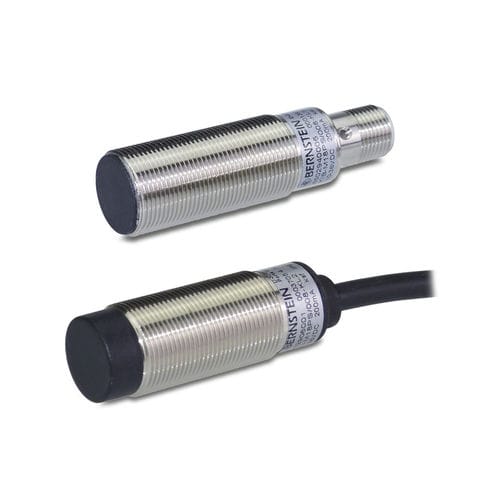

Inductive proximity sensor KIB / KINcylindricalM18IO-Link
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M18
- Output signal
- IO-Link
- Mounting
- threaded
- Material
- brass
- Protection level
- rugged, short circuit-proof, IP67
- Length
Min.: 36 mm
(1.42 in)Max.: 117 mm
(4.61 in)- Measuring range
Min.: 5 mm
(0.2 in)Max.: 16 mm
(0.63 in)
Description
- High switching frequencies up to 1000 kHz
- Fully encapsulated versions to protection class IP67
- Sturdy metal enclosure
- Temperature range: -25°C up to +70°C
- Sensing distances: 5 mm up to 16 mm
- 10 – 36 V DC or 20-250 V AC
- PNP / NPN versions
- NO / NC versions
- Cable / connector versions
- Function indicators
- Short circuit-proof versions
- Versions with IO-Link
Catalogs
No catalogs are available for this product.
See all of BERNSTEIN AG‘s catalogs
