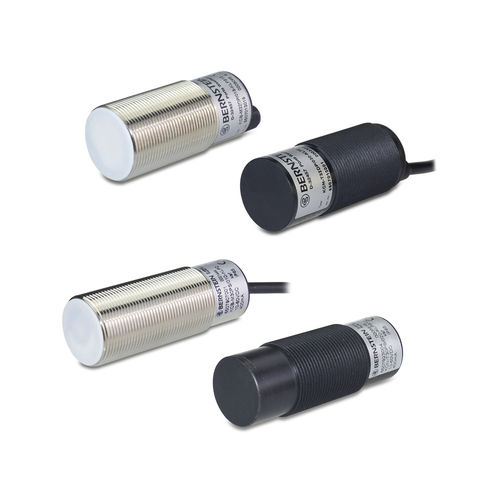

Capacitive proximity sensor KCB / KCNcylindricalM30with relay output
Add to favorites
Compare this product
Characteristics
- Technology
- capacitive
- Shape
- cylindrical
- Diameter
- M30
- Output signal
- with relay output
- Mounting
- threaded
- Material
- plastic, brass
- Protection level
- rugged, short circuit-proof, IP67, IP65
- Other characteristics
- programmable
- Length
Max.: 82 mm
(3 in)Min.: 60 mm
(2 in)- Measuring range
Max.: 30 mm
(1.18 in)Min.: 10 mm
(0.39 in)
Description
- AC and DC version sensors
- M32 with programmable output, PNP / NPN and NO / NC
- M32 with relay output and timer version
- Potentiometer-adjustable sensing distance / sensitivity
- Sturdy metal or plastic enclosures
- Metal versions with Teflon front cap
- Temperature range: -25°C up to +70°C
- Sensing distances: 10 mm up to 30 mm
- Cable / connector versions
- 10 – 60 V DC or 20 – 250 V AC
- PNP / NPN or AC versions, relay output
- NO / NC versions
- Short circuit-proof versions
- Function and operating voltage indicators
