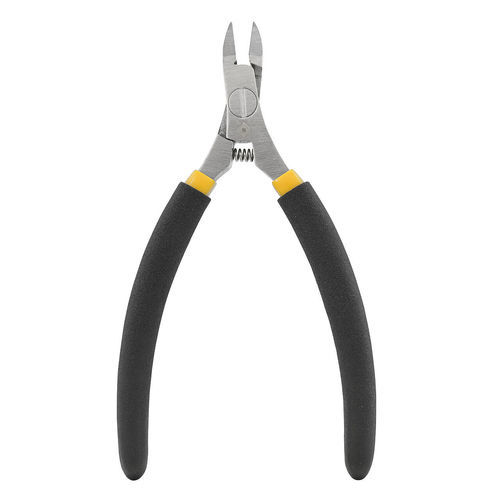

Side cutting pliers 3-302

for electronicsfor wirefor laboratory

Precision micro side cutter for electronics, model making and fine mechanics. The very slim, rounded 8 mm head enables access to tight spaces and provides absolutely clean, flush cuts while the ESD-safe handle protects sensitive electronic components.

Key features

• Full flush (without side face, cut completely flush)
• Cutting capacity for soft wire: up to Ø 0.8 mm
• Head width: 8 mm (narrow, rounded)
• Blade length: (not specified on page)
• Material: C67 carbon steel
• Surface: matt polished (glare-free and reflection-free)
• ESD handle: two-color dip-insulated, dissipative 10^6 – 10^8 Ω
• Overall length: 115 mm
• Weight: 55 g

Technical description
The micro side cutter is designed for precise cutting tasks in electronics, model making and fine mechanics. Its extremely slim head reaches hard-to-access areas and ensures an absolutely clean, flush cut. Ergonomic, non-slip handles provide comfortable and safe operation. Cutting capacity for copper wire: up to Ø 1.0 mm (as stated in the technical description). The tool is suited for electronics manufacturing, PCB assembly, model building and laboratory environments.

Characteristics / technical specifications

• Article number: 3-302
• Commercial denomination / model: ESD MICRO side cutters ZSM
• Brand: Bernstein
• Length: 115 mm
• Head width: 8 mm (rounded)
• Cutting capacity (soft wire): up to Ø 0.8 mm
• Cutting capacity (copper wire): up to Ø 1.0 mm
• Material: C67 carbon steel
• Surface finish: matt polished
• Handle: ESD two-color dip-insulated, dissipative 10^6 – 10^8 Ω
• Weight: 55 g
