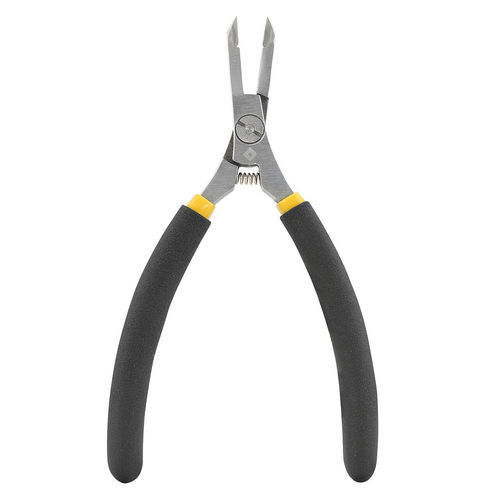

Cutting pliers 3-306

for electronicsfor wireangled nose

Precision ESD-safe oblique top cutters for delicate, low-clearance cutting tasks in electronics, model making and fine mechanics. The extremely slim angled head provides access to tight areas and ensures a clean, flush cut.

Technical description
Designed for precise cutting where a slim head and full-flush cuts are required. Construction ensures long service life and consistent cutting performance while reducing reflections and improving ergonomic handling. Suitable for cutting soft and copper wires within specified capacities.

Characteristics / technical specifications

• Article number: 3-306
• Series / model: ZSM
• Denomination: ESD MICRO oblique top cutters
• Full flush (without side face; cut completely flush)
• Cutting capacity (soft wire): up to Ø 0.8 mm
• Cutting capacity (copper wire): up to Ø 1.0 mm
• Head width: 8 mm
• Blade length: not specified
• Blade material: C67 carbon steel
• Surface: matt polished (glare-free and reflection-free)
• Handle: ESD handle (two-colour dip-insulated), dissipative 10^6 – 10^8 Ω
• Length: 120 mm
• Weight: 55 g
