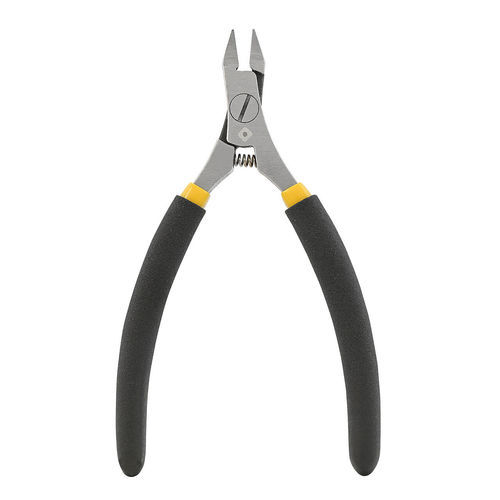

Side cutting pliers 3-304

for electronicsfor wirefor laboratory

Precision ESD-safe micro side cutter designed for exact cutting tasks in electronics, model making and fine mechanics, featuring a very slim head for access into confined areas and delivering clean, flush cuts.

Features

• Full flush (without side face, cut completely flush)
• Cutting capacity for soft wire up to Ø 0.8 mm
• Head width 8 mm
• Blade length: not specified
• Material: C67 carbon steel
• Surface: matt polished (glare-free and reflection-free)
• ESD handle (two-color dip-insulated), dissipative 10^6 – 10^8 Ω
• Length 115 mm
• Weight 55 g

Technical description
The micro side cutter with an 8 mm head width is intended for precise cutting tasks in electronics, model making and fine mechanics. Its extremely slim head reaches hard-to-access areas and ensures an absolutely clean, flush cut. The cutting edges are made from high-quality C67 carbon steel for long service life and excellent cutting performance. With a cutting capacity up to Ø 1.0 mm (copper wire) it is suitable for electronics assembly, PCB work, model building and laboratory use.

Technical specifications

• Article number: 3-304
• Series / model: ZSM
• Product line: ESD MICRO
• Overall length: 115 mm
• Head width: 8 mm
• Cut type: Full flush (cut completely flush without side face)
• Cutting capacity (soft wire): up to Ø 0.8 mm
• Cutting capacity (copper wire): up to Ø 1.0 mm
• Material (cutting edges): C67 carbon steel
• Surface finish: matt polished (glare-free, reflection-free)
• Handle: ESD two-color dip-insulated, dissipative 10^6 – 10^8 Ω
• Weight: 55 g
