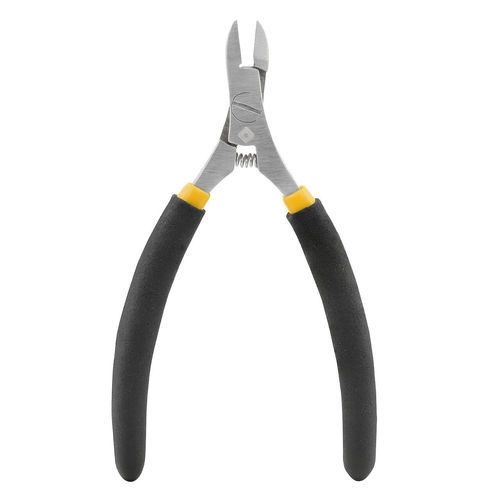

Cutting pliers 3-301

for electronicsfor wiremicro tip

Overview
Precision ESD-safe micro side cutter designed for precise cutting tasks in electronics, model making and fine mechanics. Its extremely slim 8 mm rounded head allows access to tight areas and enables clean, flush cutting of wires and components.

Features

• Full flush cutting (cuts completely flush)
• Cutting capacity for soft wire: up to Ø 0.8 mm
• Cutting capacity for copper wire: up to Ø 1.0 mm (application-specific)
• Head width: 8 mm (rounded)
• Blade length: not specified
• Material: C67 carbon steel
• Surface: matt polished (glare-free, reflection-free)
• ESD handle: two-color dip-insulated, dissipative
• ESD dissipation range: 10^6 – 10^8 ohm
• Overall length: 115 mm
• Weight: 55 g

Technical description
The micro side cutter with an 8 mm head width is intended for precise cutting operations in electronics, model making and precision mechanics. The very slim, rounded head reaches confined spaces and provides an absolutely clean, flush cut. Cutting edges are made from C67 carbon steel for durability and consistent cutting performance. The matt polished finish reduces reflections during fine work. Ergonomic, non-slip handles ensure safe handling. The tool is ESD-safe to protect sensitive electronic components from electrostatic discharge.

Characteristics / technical specifications

• Article / designation: 3-301
• Series / model: ESD MICRO
• Type: micro side cutter for precision cutting
• Total length: 115 mm
• Weight: 55 g
• Head width: 8 mm (rounded)
• Cutting capacity (soft wire): up to Ø 0.8 mm
• Cutting capacity (copper wire): up to Ø 1.0 mm
• Cutting type: Full flush (cuts completely flush)
• Blade material: C67 carbon steel
• Surface finish: matt polished (glare-free, reflection-free)
• Handle: ESD two-color dip-insulated
• ESD dissipative resistance: 10^6 – 10^8 ohm
• Blade length: not specified
