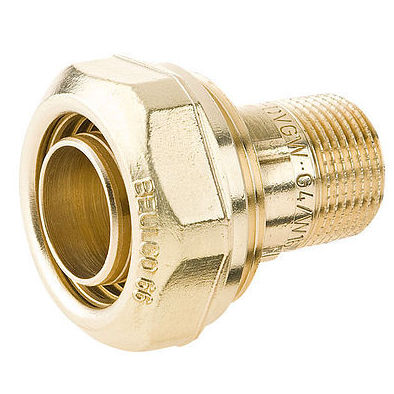

Hydraulic fitting 66011
screw-incompressionbrass

hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
screw-in, compression
Material
brass
Other characteristics
hygienic
Diameter

Min.: 25 mm
(0.984 in)

Max.: 63 mm
(2.48 in)

Operating pressure

Min.: 0 bar
(0 psi)

Max.: 4 bar
(58.02 psi)

Description

Clamping connector / screw connector with fixed support tube for optimum grip and durability. With our flexible all-rounder you can always rely on the right connector in the water, gas, heating and local / district heating sector. Our connectors are made of water-hygienic suitable material and are therefore ideal for use in the drinking water sector. The connector consists of only three components and thus allows quick and easy installation without special tools. The support tube firmly connected to the main body brings the plastic tube into an exactly round shape and supports it towards the outside, meaning it maintains the internal pressure against the brass clamping ring of the connector. Even with negative pressure no pipe deformation occurs. Due to its special contour, the fixed support tube also ensures the sealing function. The model is available in different versions. Pipe diameter: 25mm - 63mm Thread sizes: 1/2 "- 1 1/2"
