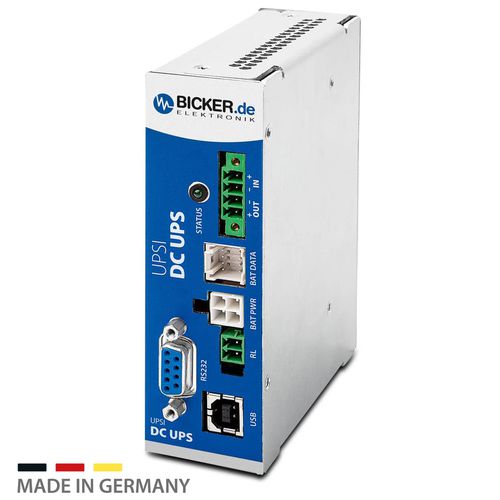

24 V UPS UPSI-2406D
24 Vdcindustrialmedical

24 V UPS
24 V UPS
Add to favorites
Compare this product


Characteristics

Electrical characteristics
24 V, 24 Vdc
Applications
industrial, medical
Other characteristics
compact, with built-in battery, DIN rail, with LED indicator, rugged, custom, with supercapacitor, RoHS
Output power kVA

144 W
(0.1958 hp)

Input voltage

Max.: 29 V

24 V

Min.: 22.5 V

Output voltage

24 V

Description

Bicker UPSI-2406D 24VDC-USV-System mit LiFePO4- und Supercap-Batteriepacks for DIN-Rail Intelligent DC UPS 144W / 24VDC 6A / DIN-Rail version The compact UPSI-2406D for DIN rail mounting protects the connected loads safely against fluctuations and interruptions of the supply voltage. The UPSI-2406D can be delivered with two different external storage media – Long-life LiFePO4- or Supercap battery packs. Through intelligent power sharing the source does not need to be oversized to load the battery packs. In addition, the UPSI-2406D offers various functions like min. load disconnect, battery disconnect and external signal shutdown. Through the free HID-Battery-Parameter software adjustments at the UPS can be done via PC. • 24V DC UPS (DIN rail version) • Long-life LiFePO4 and Supercap battery packs • Intelligent power sharing • Regulated output voltage during backup operation • Min. load disconnect • Battery disconnect • Power fail timer • Battery start function • External signal shutdown • Battery hot swap • USB & RS232 Interface • HID control center • Reboot function

Catalogs

UPSI-2406D
UPSI-2406D
3 Pages
