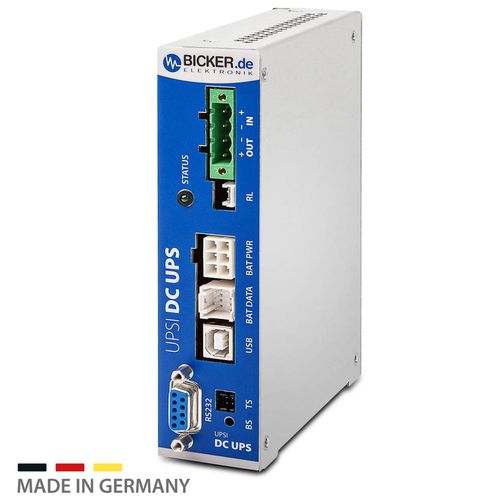

24 V uninterruptible power supply UPSI-2412D

industrialmedicalfor emergency lighting

Bicker UPSI-2412D Uninterruptible power supply (DC UPS) 240W / 24V 10A / DIN Rail version Intelligent DC-UPS The intelligent DC UPS UPSI-2412D for flexible system integration reliably bridges power failures and faults, so that the uninterruptible 24 VDC power supply with up to 10A is guaranteed at the output at all times. In normal operation, the UPSI-2412D forwards the DC input voltage directly to the output, charges the connected energy storage device in parallel and monitors all relevant parameters, currents and voltages. In the event of a voltage drop or power failure, a MOSFET disconnects the input within a few microseconds and the connected load is supplied without interruption from the energy storage device and the UPSI-2412D provides a constantly regulated DC output voltage. • Supercap or LiFePo4 energy storage • Regulated output voltage at backup • Minimum load disconnect • Battery start function • Configurable potential-free relay contact for PowerFail • Intelligent PowerSharing-Function • USB & RS232 Interface • Plug&Play - recognized as UPS by operating system • Extended functionality by UPSGen2 configuration software • Timer function • Shutdown & Reboot function • 3 years warranty
