Mounted flap wheel making machine MFW-PACK
automatic

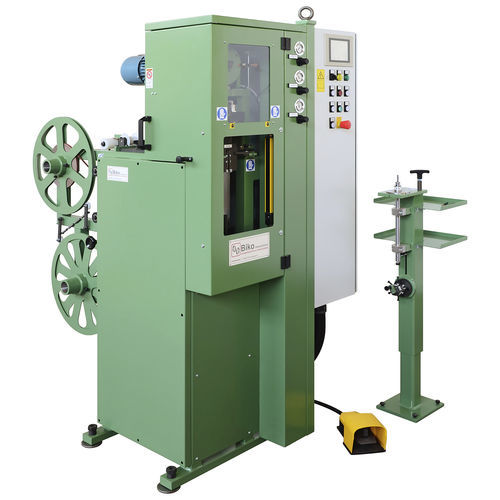

Mounted flap wheel making machine - MFW-PACK - Biko Meccanica Srl - automatic
Mounted flap wheel making machine - MFW-PACK - Biko Meccanica Srl - automatic
Mounted flap wheel making machine - MFW-PACK - Biko Meccanica Srl - automatic - image - 2
Add to favorites
Compare this product

Characteristics

Finished product
for mounted flap wheel
Other characteristics
automatic
Throughput

4 p/min

Description

The flap wheel machine MFW-PACK automatically cuts the flaps and stacks them, giving the operator a preset flap packet for manual wheel forming. A set of tools for packet handling and wheel forming is supplied with the machine. Technical Data - Wheels diameter: from 20 to 80 mm - Wheels width: from 15 to 50 mm - Variable cutting speed - Brushless motor for web feeding - Touch screen panel for easy setup - 2 unwinders for 500 mm max. diameter rolls - Productivity on wheel diameter 40 mm, width 30 mm: up to 4 wheels per minute Tools A- vailability of different tools for any width or diameter within the machine capabilities - Handling and forming tools for easy operation Size and Power - Overall machine dimensions: 1.5 x 1.0 x 1.9 m - Approx. weight: 550 kg - Installed power: 1 kW - Air consumption: 2.5 Nl/cycle
