Spin test machine STM
automaticfor flap wheelfor mounted flap wheel

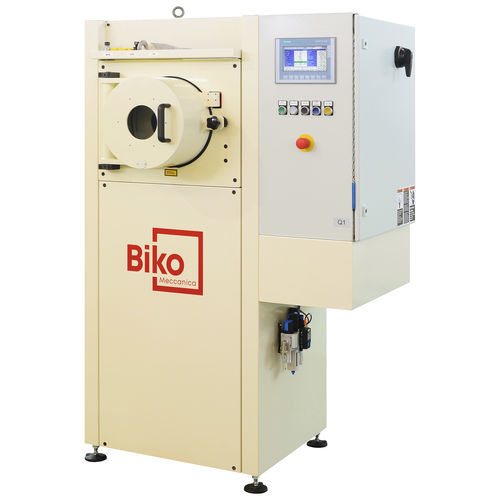

Spin test machine - STM - Biko Meccanica Srl - automatic / for flap wheel / for mounted flap wheel

Spin test machine - STM - Biko Meccanica Srl - automatic / for flap wheel / for mounted flap wheel - image - 2

Spin test machine - STM - Biko Meccanica Srl - automatic / for flap wheel / for mounted flap wheel - image - 3

Spin test machine - STM - Biko Meccanica Srl - automatic / for flap wheel / for mounted flap wheel - image - 4

Spin test machine - STM - Biko Meccanica Srl - automatic / for flap wheel / for mounted flap wheel - image - 5

Spin test machine - STM - Biko Meccanica Srl - automatic / for flap wheel / for mounted flap wheel - image - 6

Add to favorites

Compare this product

Characteristics

Test type: spin
Operating mode: automatic
Test material: for flap wheel, for mounted flap wheel
Sector: industrial

Description

The STM spin test machine is used to test various products at high rotational speeds. The STM machine can be used for Mounted and Unmounted Flap Wheels and for Flap Discs. Technical Data - Two versions: up to 33,000 rpm, or up to 66,000 rpm test speeds - System to mount mounted, unmounted flap wheels and flap discs - Mounted flap wheels up to 80 mm dia., 50 mm width - Unmounted flap wheels up to 150 mm dia., 25 mm width - Flap discs up to 230 mm dia. - Sensor to detect flap loss or wheel/disc explosion - Including mounting adapters for UFW, MFW (1/8", 6 mm, 1/4” pin diameter) and flap discs - Touch panel with all data provided and record of test results, up to 200 recipes on HMI Options - System to record data and read it directly from server (Ethernet connection) Size and Power - Overall machine dimensions: 0.9 x 1.1 x 1.7 m - Approx. weight: 350 kg - Installed power: 2.2 kW - Air consumption: 0.5 m3/h
