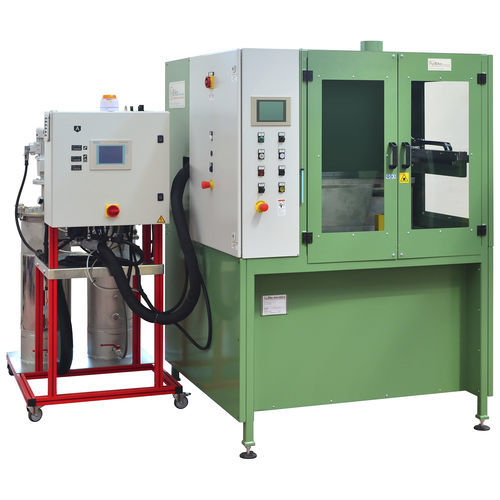

3-axis adhesive dispensing machine MFW-INJ

resinfor mounted flap wheel

The flap wheel MFW-INJ machine is a 3-axis injection system used to fill mounted flap wheel with resin. The equipment cosists of a single unit able to interface with a resin mixing system which is displaced over the whole wheel tray. The pouring of the resin happens in the center of the wheel and the vertical displacement guarantees an even filling. Technical Data - Manual tray loading, full automatic resin injection - Wheels diameter: from 20 to 80 mm - Wheels width: from 10 to 50 mm - Variable filling quantity - Refill cycle - Touch screen panel for easy setup Size and Power - Overall machine dimensions: 1.4 x 1.4 x 2.0 m - Approx. weight: 800 kg - Installed power: 3 kW
