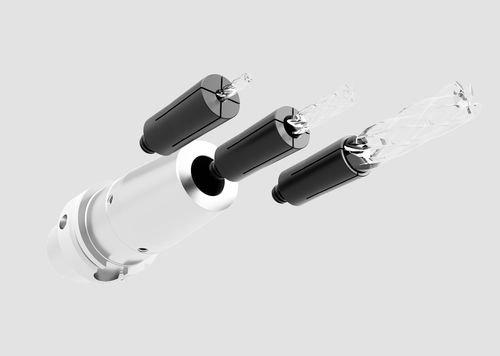

Shrink chuck ThermoGrip® TMG

Weldonfor precision engineering

general mechanical Engineering, Medical- and Dental Technology, Mold and Die, Renewable Energy Features Constant maximum clamping forces Process-safe clamping of all shank tolerances from h4 to h9Process-safe clamping of all shank tolerances from h4 to h9 Anti pullout system for Weldon shanks Concentricity ≤ 3 μm Benefit Increase of the metal removal rate Excellent damping properties Therefore better surfaces and better maintenance of tolerances One Basic holder for all diameters M stands for Constant Maximum Clamping Forces. Due to the consistant maximum overlap of tool and chuck, the design ensures constant hight clamping forces. The sleeve is also available with pullout protection (Weldon). M stands for added value. For the first time, TMG clamps tool shanks of almost any diameter with one and the same shrink chuck. In this way, the entire production requirement can be covered cost-effectively. The flexibility of basic holders can be used to cover the entire production requirement.For the first time, TMG clamps tool shanks of almost any diameter with one and the same shrink chuck. In this way, the entire production requirement can be covered cost-effectively. The flexibility of basic holders can be used to cover the entire production requirement. Transmittable torque with 16 mm shaft diameter The new Bilz TMG clamping system combines the strengths of shrink clamping technology with the flexibility of collet solutions. The system consists of basic holders and specially coated collets. Shank tools from 2 to 32 mm can be clamped with previously unattained clamping forces. For example, more than 850 Nm for a 20 mm tool shank.
