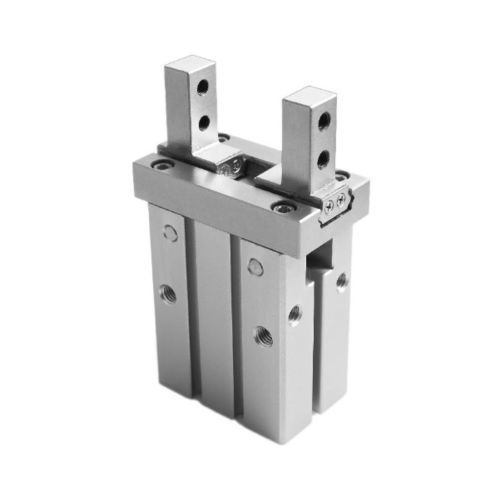

Parallel gripper MHF series

pneumatic2-jawdouble-acting

MFD's Parallel Grippers are robust double acting or single acting grippers. A linear guide provides high precision that has a repeatability of +/-0.01 for 6-25mm bores and +/-0.02 on 32-40mm bores. To help with installation, most grippers can be mounted from 3 different sides. Reed and solid state switches that fit into the side grooves are available separately. • Bore Sizes: 6, 10, 16, 20, 25, 32, 40mm available • Most available with roller bearings. • Pressure Range on 6-10mm bores: 28-100 PSI (double acting), 50-100 PSI (single acting) • Pressure Range on other bores: 15-100 PSI (double acting), 36-100 PSI (single acting) • Mounting Style: Available with either standard mounting or bottom mounting • M3x0.5 and M5x0.8 ports available
