- Brass cable gland
- Bimed Teknik Aletler

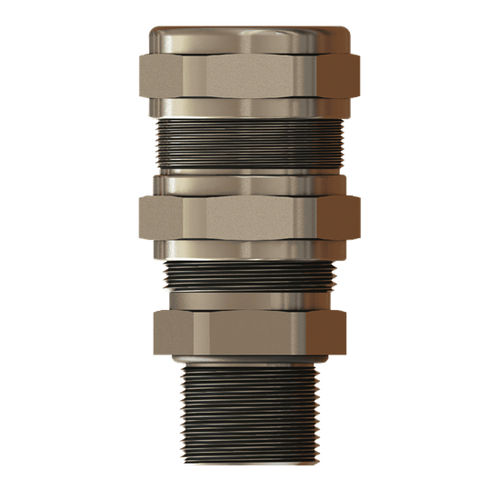

Brass cable gland KBA1MIP68IP66
Add to favorites
Compare this product
Characteristics
- Material
- brass
- Protection level
- IP68, IP66
- Cable diameter
31.5 mm
(1.24 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Product Info
Cable Glands for SWA and AWA Cables
M20x1,5 / 8,5-16,0mm / TL=16,0mm
KBA1M
File Number Standard
CESI 13 ATEX 033X EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-
7:2015, EN 60079-31:2014
IECEx CES 13.0013X EN 60079-0:2012; EN 60079-1:2007; EN 60079-7:2007; EN
60079-31:2009
E474828_VOL.1_SEC.2 UL 2225, CAN/CSA-C22.2 No. 60079-0:11 CAN/CSA
C22.2 No. 60079-7:12 CAN/CSA-C22.2 No. 60079-31:12
E199260_VOL.3_SEC.2 UL 514B; UL50E
No TC RU C-TR.AA87.B.00941 ГОСТ 31610.0-2014 ГОСТ IEC 60079-1:2013 ГОСТ IEC
60079-31:2013
DNV 12.0053 X ABNT NBR IEC 60079-0:2013 ABNT NBR IEC 60079-1:2009
ABNT NBR IEC 60079-7:2008 ABNT NBR IEC 60079-31:2011
TAE00003WU IEC/EN60079-0, IEC/EN60079-7, IEC/EN60079-31
IEC/EN60079-1, IEC/EN 62444
Catalogs
No catalogs are available for this product.
