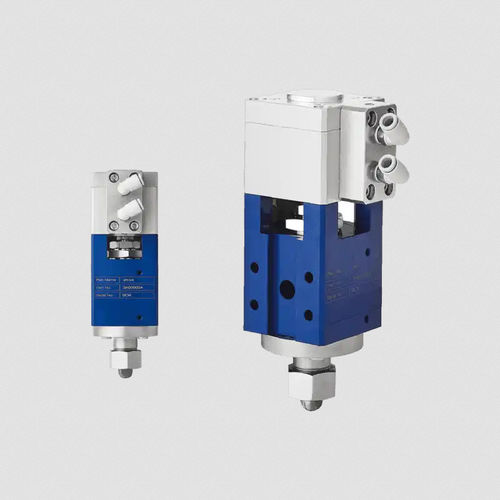

Dispensing gun BPR

for sealantautomatichigh-pressure

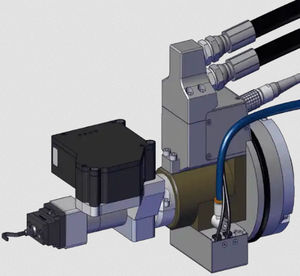

The BPR Gun and its components are designed to provide precise and reliable dispensing solutions for various industrial applications. This webpage provides an overview of the key features, specifications, and usage guidelines for the BPR Gun and its associated units. BPR Gun The BPR (Body Panel Reinforcement) Gun is a specialized tool used for dispensing high-pressure fluids in various industrial settings. Its unique design allows for precise control over fluid flow and pressure, making it an ideal solution for applications such as: Body panel reinforcement Paint application Adhesive dispensing BPR Gun Unit The BPR Gun Unit is a self-contained system consisting of the BPR Gun Ass’y (3A00000A) and Preheating Body (0Z04002A). This unit is designed to provide high-pressure fluid dispensing capabilities, including: Pressure sensing Temperature control Adjustable pressure ranges The BPR Gun Unit can be combined with various elements and controllers to develop specific systems for different applications. For system designers and engineers, CFT-Korea provides a wide range of components and accessories. Specifications BPR Gun Unit Specification - Description Pressure Range - 2 ~ 8 kgf/cm² (adjustable) Temperature Range - -20°C to 80°C Inlet Diameter - 10 mm Air Pressure - 2 ~ 8 kgf/cm² (filtered, dried, and lubricated) Leak Durability - 100,000 cycles at 100 bar, Temp. 24°C Air Consumption (cc/cycle) - Refer to Chart BPR Gun Ass’y Specification - Description Revision - 08 May 2019, Revision: 13 Apr. 2017 Operating Pressure - 300 kgf/cm² (Air pressure 8kgf/cm²)
