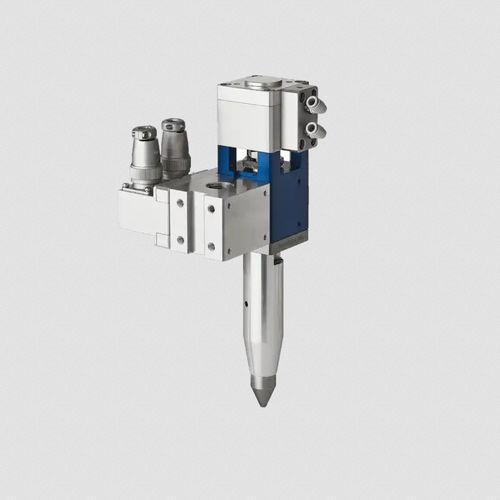

Dispensing gun 9C00000C/D/E

automatichigh-pressure

The Mastic Gun Unit is a professional-grade dispensing tool engineered for precision application of high-pressure and high-viscosity materials. Designed with durability and stability in mind, this unit delivers consistent performance across various industrial applications. With its robust construction featuring a rod guide that prevents chattering and ensures concentric alignment, the Mastic Gun Unit minimizes flow resistance and material waste while maximizing dispensing accuracy. The Mastic Gun Unit offers: Versatile configuration for single or dual gun setups Precision machining for smooth material flow Durable design with reduced over/short material at start/end Compatibility with a wide range of materials from low to high viscosity Stable operation with compressed air (2-8 kgf/cm²) Specification - Value Model Number - 9C00000C/D/E (Standard) Assembly Model - 3H00000B Operating Air Pressure - 2 ~ 8 kgf/cm² Maximum Inlet Pressure - 300 kgf/cm² (at 8 kgf/cm² air pressure) Nozzle Diameter - 3.5 mm (refer to chart for specific models) Temperature Range - -20 ~ 80 °C Dimensions (W x H x L) - 114 x 279 x 138.5 mm (refer to ‘Dimensions’ section for details) Weight - 8 kg Manufacturer - Binks-Korea Configuration Options - Single gun or dual gun (minimum 54mm spacing) Leak Durability - 100,000 cycles at 100 bar, 24°C
