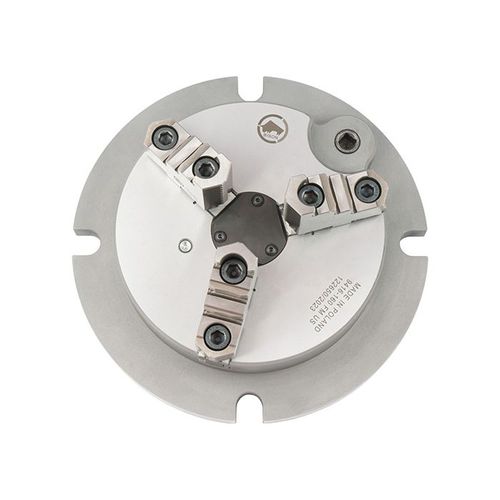

Measurement fixture 9416-250 FM US

Product overview
A milling fixture in the form of a spiral lathe chuck with split jaws, integrated with the base. Suitable for mounting on milling machine tables, T‑towers, drill tables and surface grinders. Low‑profile design maximizes Z‑axis working range while the sealed construction protects the mechanism from chips and contaminants. The wide clamping range and long jaw travel allow secure clamping of various workpiece sizes without frequent jaw set changes.

Details
Size: 250
Product type: 9416-250 FM US
Measurement unit: metric
Promo: No
Stock status: Out of Stock
Price (incl. VAT): €4,415.70
Price (excl. VAT): €3,590.00

Technical specifications

• Model: 9416-250 FM US
• Form: spiral lathe chuck with split jaws, integrated with the base
• Applications: milling machine tables; T‑towers; drill tables; surface grinders
• Design: low‑profile to maximize Z‑axis working range
• Construction: sealed mechanism to protect from chips and contaminants
• Clamping: wide clamping range and long jaw travel for various workpiece sizes
• Measurement unit: metric
• SKU: 329416240900
