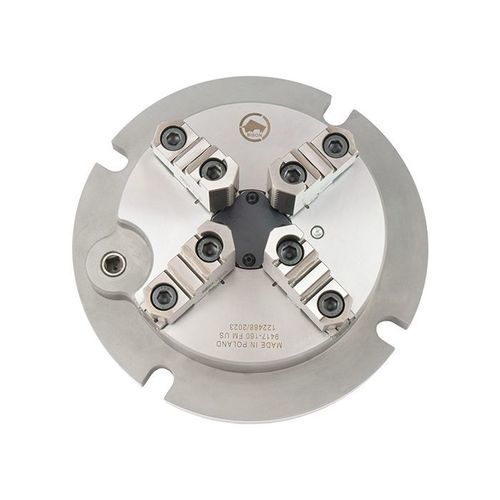

Positioning fixture 9417-160 FM US

Description
A self-centering milling fixture designed as a spiral lathe chuck with integrated split jaws and base. Adaptable for mounting on milling machine tables, T-slot tables, drill tables and surface grinders. The low-profile design maximizes Z-axis working range while the sealed construction protects the internal mechanism from chips and contaminants. The wide clamping range and long jaw travel allow secure clamping of various workpiece sizes without changing jaw sets.

Key features

• Low-profile spiral lathe chuck design
• Integrated split jaws and base
• Sealed construction to protect mechanism from chips
• Wide clamping range and extended jaw travel
• Suitable for metric setups
• No need to change multiple jaw sets for different sizes

Applications

• Mounting on milling machine tables (T-slot)
• Use on T-towers and drill tables
• Integration with surface grinders
• General precision clamping for machining operations

Technical specifications

• Size: 160 mm
• Product type / Model: 9417-160 FM US
• Measurement unit: metric
• SKU: 329417220300
• Price (Excl. VAT): €2,620.00
• Currency: EUR
• Promo: No
