Fixture 9417-200 FM US

Overview

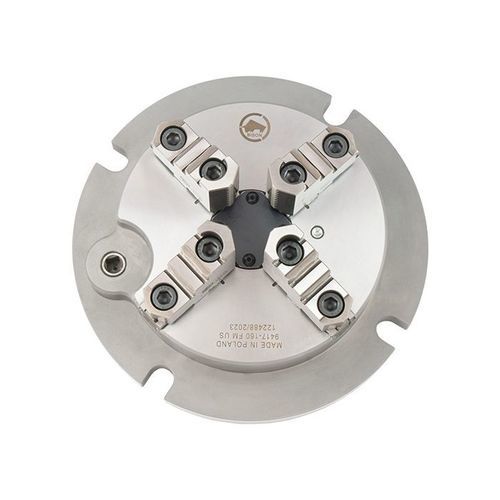

A milling fixture in the form of a spiral lathe chuck with split jaws, integrated with the base. Depending on the adaptation, it can be mounted on milling machine tables, T‑towers, drill tables or surface grinders. Low‑profile construction maximizes Z‑axis working range while the sealed design protects the mechanism from chips and contaminants. Wide clamping range and long jaw travel enable secure clamping of varied workpiece sizes without frequent jaw changes.

More Information
Promo: No
Size: 200 mm
Product type: 9417-200 FM US
Measurement unit: metric

Technical specifications

• SKU: 329417230500
• Model designation: 9417-200 FM US
• Size (diameter): 200 mm
• Measurement unit: metric
• Design: spiral lathe chuck with split jaws integrated with the base
• Suitable for: milling machine tables, T‑towers, drill tables, surface grinders (depending on adaptation)
• Low‑profile construction to maximize Z‑axis working range
• Sealed construction to protect mechanism from chips and contaminants
• Wide clamping range and long jaw travel for secure clamping of varied workpiece sizes without frequent jaw changes
• Stock status: Out of Stock
• Price (excl. VAT): €3,121.00
