Fixture 9417-315 FM US

Product description

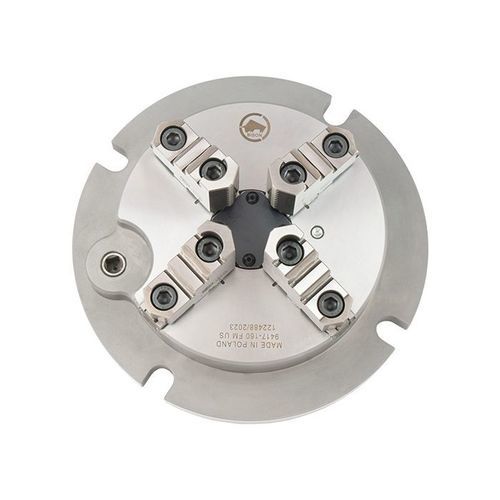

A self-centering milling fixture in the form of a low-profile spiral lathe chuck with split jaws and an integrated base. Depending on the adapter, it can be used on milling machine tables, T-towers, drill tables and surface grinders. The low-profile design maximizes Z-axis working range while the sealed construction protects the mechanism from chips and contaminants. The wide clamping range and long jaw travel provide secure clamping of various workpiece sizes without frequent jaw changes.

More information
Promo: No
Size: 315
Product type: 9417-315 FM US
Measurement unit: metric

Technical specifications

• Model: 9417-315 FM US
• Size: 315
• Measurement unit: metric
• Promo: No
• SKU: 329417250900
• Design: low-profile spiral lathe chuck with split jaws, integrated base
• Applications: milling machine tables, T-towers, drill tables, surface grinders
• Features: sealed construction to protect mechanism from chips and contaminants; wide clamping range and long jaw travel to clamp various workpiece sizes without frequent jaw changes
