Right angle gear-motor 730 series
DCAChypoid

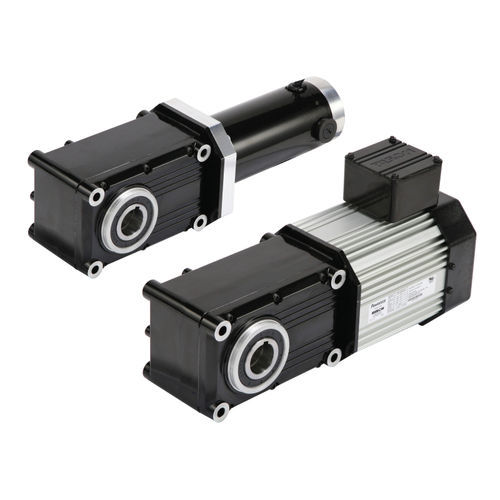

Right angle gear-motor - 730 series - BISON - DC / AC / hypoid
Right angle gear-motor - 730 series - BISON - DC / AC / hypoid
Right angle gear-motor - 730 series - BISON - DC / AC / hypoid - image - 2
Right angle gear-motor - 730 series - BISON - DC / AC / hypoid - image - 3
Right angle gear-motor - 730 series - BISON - DC / AC / hypoid - image - 4
Right angle gear-motor - 730 series - BISON - DC / AC / hypoid - image - 5
Right angle gear-motor - 730 series - BISON - DC / AC / hypoid - image - 6
Right angle gear-motor - 730 series - BISON - DC / AC / hypoid - image - 7
Right angle gear-motor - 730 series - BISON - DC / AC / hypoid - image - 8
Right angle gear-motor - 730 series - BISON - DC / AC / hypoid - image - 9
Right angle gear-motor - 730 series - BISON - DC / AC / hypoid - image - 10
Add to favorites
Compare this product

Characteristics

Motor type
DC, AC
Type
hypoid
Shaft orientation
right angle
Shaft configuration
hollow-shaft
Power
10 W...50 W, 0 W...10 W
Voltage
24 V, 115 V, 90 V, 460 V, 380 V
Torque
10 - 20 Nm, 20 - 50 Nm, 50 - 100 Nm
Performance
high-efficiency, low-backlash
Other characteristics
compact, custom-made, precision
Gear ratio

Min.: 10 unit

Max.: 240 unit

Description

7-198 RPM · 79-1730 in-lbs · 1/4 - 1/2 HP · AC and DC options available Best-In-Class Right Angle Hypoid Gearmotors feature: - Advanced hypoid gearing technology for improved energy efficiency - Maximum power density means a compact profile without compromising performance - Exclusive Powerstar EP lubricant for extended life - Ground gearing provides whisper quiet operation and low backlash precision The Hypoid Difference - Larger Diameter Pinions for more surface contact area - Multiple Tooth Contact handles larger loads at better efficiency - Offset Gears transmit higher torque Continuous Duty Motors rated for continuous duty operation. Energy Efficient Advanced hypoid gearing provides improved energy efficiency along with ground gearing for whisper quiet operation and low backlash precision. Customizable Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit. Markets & Applications Agricultural Equipment Food & Beverage Service Packaging Equipment Energy
