Right angle gearmotor 060 Series
DCACworm

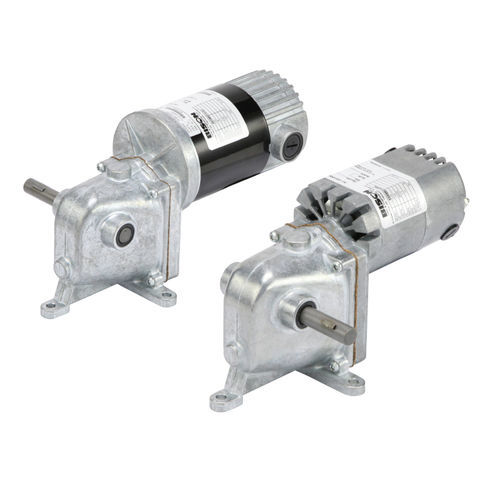

Right angle gearmotor - 060 Series - BISON - DC / AC / worm
Right angle gearmotor - 060 Series - BISON - DC / AC / worm
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Motor type
DC, AC
Type
worm
Shaft orientation
right angle
Shaft configuration
solid-shaft
Power
10 W...50 W, 50 W...100 W
Voltage
230 V, 115 V, 90 V
Torque
20 - 50 Nm, 10 - 20 Nm, 5 - 10 Nm
Product applications
industrial
Other characteristics
compact
Gear ratio

Min.: 37 unit

Max.: 1,205 unit

Description

2-90 RPM · 34-250 in-lbs · 1/20 - 1/10 HP · AC and DC options available Motor Specifications Enclosure: TENV (DC), TEFC (AC) Insulation: Class B Minimum (AC), Class F (DC) Bearings: Ball Rotation: Clockwise Facing Output Shaft Motor Type: Permanent Split Capacitor (AC), PMDC (DC) Gearhead Specifications Finish: Unpainted Mounting: All Positions Shafts: Hardened Steel Bearings: Porous Bronze Sleeve Lubrication: Grease Housing: Precision Machined Die Cast Aluminum Gearing: Worm: Hardened Steel, Output Gear: Cast Iron Duty Rating: Continuous Compact Design Delivers optimal speed and torque in a small package. Perfect for applications that have limited space. Continuous Duty Motors rated for continuous duty operation. Markets & Applications Agricultural Equipment Construction Equipment Food & Beverage Preparation Material Handling Equipment Packaging Equipment
