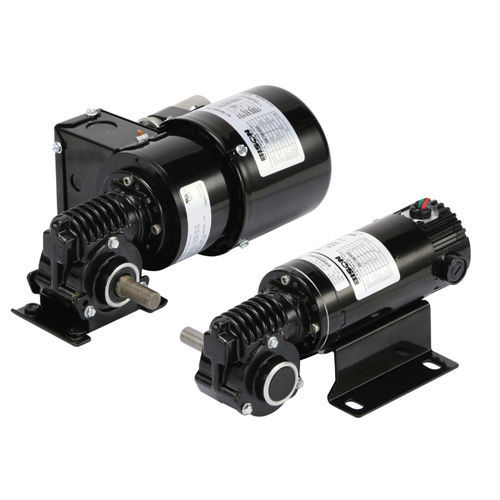

Right angle gear-motor 746 series
DCpermanent magnetAC

Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 2
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 3
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 4
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 5
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 6
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 7
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 8
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 9
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 10
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 11
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 12
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 13
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 14
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 15
Right angle gear-motor - 746 series - BISON - DC / permanent magnet / AC - image - 16
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Motor type
DC, permanent magnet, AC
Type
worm
Shaft orientation
right angle
Shaft configuration
solid-shaft
Power
10 W...50 W, 50 W...100 W
Voltage
380 V, 115 V, 90 V
Torque
1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm
Number of stages
single-stage
Product applications
industrial
Other characteristics
compact, precision
Gear ratio

Min.: 10 unit

Max.: 60 unit

Description

27-180 RPM · 15-75 in-lbs · 1/12 - 1/15 HP · AC and DC options available Motor Specifications Enclosure: TENV (DC), TEFC (AC) Insulation: Class B Minimum (AC), Class F (DC) Bearings: Ball Rotation: Reversible Motor Type: Permanent Split Capacitor (AC), PMDC (DC) Gearhead Specifications Finish: Gloss Black Powder Coat Mounting: All Positions Shafts: Hardened Steel Bearings: Ball and Needle Lubrication: Lifetime Oil Bath Sealed and O-Ringed Housing: Precision Machined Die Cast Aluminum Gearing: Hardened Steel Worm, Bronze Gear Duty Rating: Continuous Compact Design Delivers optimal speed and torque in a small package. Perfect for applications that have limited space. Continuous Duty Motors rated for continuous duty operation. Customizable Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit.
