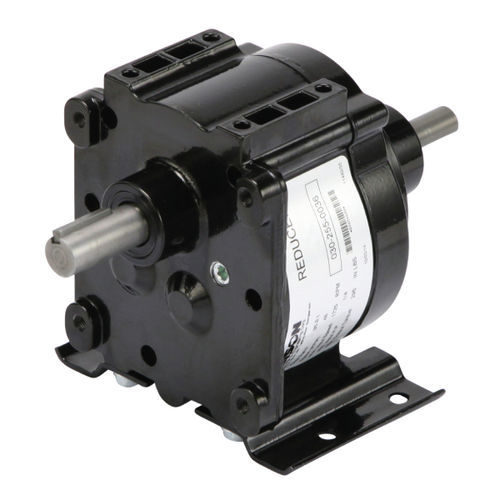

Parallel-shaft gear reducer 250 series
gear trainsolid-shaft20 - 50 Nm

Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 2
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 3
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 4
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 5
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 6
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 7
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 8
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 9
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 10
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 11
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 12
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 13
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 14
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 15
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 16
Parallel-shaft gear reducer - 250 series - BISON - gear train / solid-shaft / 20 - 50 Nm - image - 17
Add to favorites
Compare this product

Characteristics

Type
gear train
Shaft orientation
parallel-shaft
Shaft configuration
solid-shaft
Torque
20 - 50 Nm, 10 - 20 Nm
Configuration
compact
Applications
industrial
Other characteristics
rugged
Rotational speed

Max.: 136 rpm
(854.5132 rad.min-1)

Min.: 13 rpm
(81.6814 rad.min-1)

Gear ratio

Max.: 133.3 unit

Min.: 12.7 unit

Description

Shaft Input and NEMA 42C Flange Input, 142-295 in-lbs Torque Specifications Gearing: Hardened Steel, AGMA Class 9 Housing: Precision Machined Die Cast Aluminum Lubrication: Lifetime Oil Bath, Sealed and Gasketed Bearings: Ball, Needle and Thrust Ball Shafts: Hardened Steel Mounting: Face or Base, Any Angle Input: Input Shaft or NEMA 42C Compact Design Delivers optimal speed and torque in a small package. Perfect for applications that have limited space. Durable & Reliable Rugged design withstands the harshest, most demanding operating environments. Markets & Applications Agricultural Equipment Food & Beverage Service Packaging Equipment Energy
