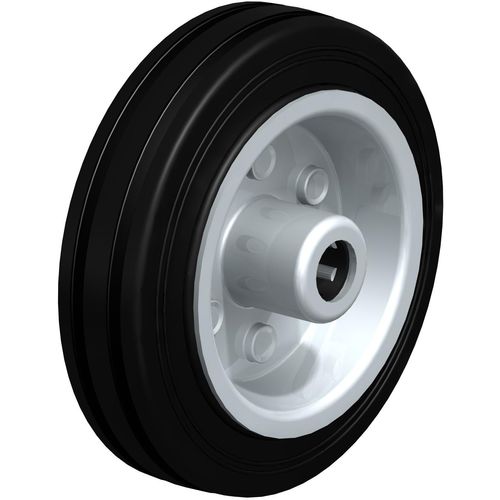

Wheel with solid tire VE series
rubberlow-noise

wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
Add to favorites
Compare this product


Characteristics

Type
with solid tire
Hub material
rubber
Other characteristics
low-noise
Load capacity

Min.: 50 kg
(110 lb)

Max.: 205 kg
(452 lb)

Diameter

Min.: 80 mm
(3.15 in)

Max.: 200 mm
(7.87 in)

Tread width

Min.: 25 mm
(0.98 in)

Max.: 50 mm
(1.97 in)

Description

The rim sections used in the VE wheel series are pressed together with the standard solid rubber tyre and the roller bearing. The wheel series provides an excellent level of operational comfort and is resistant to many aggressive substances. With a hardness of 80 Shore A, the tread is especially gentle on the floor and quiet. The wheels of the VE series are used in manually operated transport units and food carts, as support wheels on trailers and in a wide range of small units like compressors or welding equipment. Wheels in the VE series have diameters ranging between 80 and 200 mm as standard and are available with a roller bearing. The wheels are also available with a non-marking grey tyre or with an electrically conductive design.
