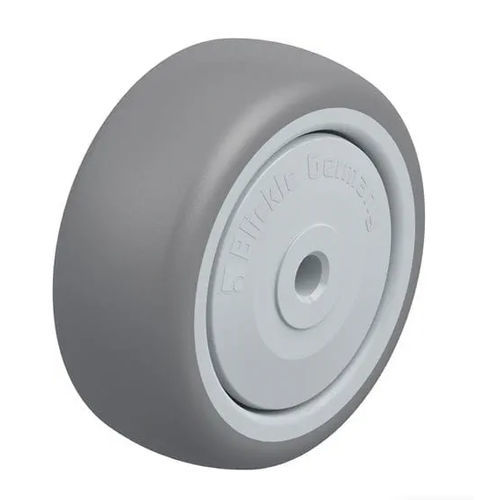

Wheel with solid tire TPA series
rubberfor medium loadslow-noise

wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
wheel with solid tire
Add to favorites
Compare this product


Characteristics

Type
with solid tire
Hub material
rubber
Applications
for medium loads
Other characteristics
low-noise, solid
Load capacity

Max.: 250 kg
(551 lb)

Min.: 100 kg
(220 lb)

Diameter

Max.: 200 mm
(7.87 in)

Min.: 80 mm
(3.15 in)

Tread width

Max.: 40 mm
(1.57 in)

Min.: 32 mm
(1.26 in)

Description

Wheels and castors in the TPA series have a tread of high-quality thermoplastic rubber-elastomer (TPE) and an impact-resistant polypropylene wheel centre. The grey tread with a hardness of 85 Shore A is chemically bonded to the wheel centre. The wheels are non-marking and characterised by low rolling and swivel resistance. The oil in the tread may cause some discolouration on sensitive surfaces. In such cases, the VPP, POES, POEV oder PATH series can be used as an alternative. The wheels in the TPA series come in sizes ranging between 80 and 200 mm in diameter. Customers can choose between a ball bearing, roller bearing or central encapsulated ball bearing. Electrically conductive wheels and wheels with additional ball bearing seals are also available.
