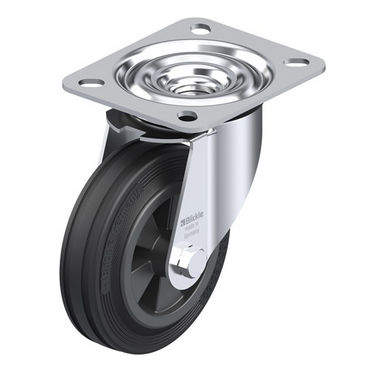

Swivel caster LE-VPP series
base platewith ball bearingwith brake

swivel caster
swivel caster
swivel caster
Add to favorites
Compare this product


Characteristics

Type
swivel
Mount
base plate
Other characteristics
with ball bearing, with brake, low-noise, rubber, pressed steel, polypropylene, thermoplastic rubber
Load capacity

Max.: 205 kg
(452 lb)

Min.: 50 kg
(110 lb)

Wheel diameter

Max.: 200 mm
(7.874 in)

Min.: 80 mm
(3.15 in)

Tread width

Max.: 50 mm
(1.97 in)

Min.: 25 mm
(0.98 in)

Description

The VPP series uses a standard solid rubber tyre which is cast onto a high-quality impact-resistant polypropylene rim. The tyres have a hardness of 80 Shore A and provide a very high level of operational comfort, good floor preservation and low-noise operation. Because it is puncture-proof, this series is also frequently used as a replacement for pneumatic tyres. They are resistant to a wide range of aggressive substances and are therefore frequently used outdoors. They are also used for waste containers in hospitals, hygiene applications, cleaning equipment and compressors. As standard, the VPP series is available with various bracket series with a top plate fitting. These vary in terms of their design depending on the application conditions or the required load capacity: L series: Pressed steel swivel bracket with top plate fitting, medium duty design
