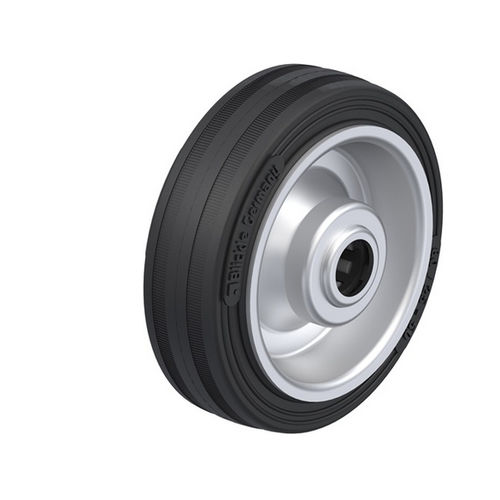

Wheel with solid tire V seriessteelfor heavy loadslow-noise
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- steel
- Applications
- for heavy loads
- Other characteristics
- low-noise
- Load capacity
Min.: 50 kg
(110 lb)Max.: 475 kg
(1,047 lb)- Diameter
Min.: 80 mm
(3.15 in)Max.: 400 mm
(15.75 in)- Tread width
Min.: 25 mm
(0.98 in)Max.: 80 mm
(3.15 in)
Description
The standard solid rubber tyre of the V series is pressed or bolted together with a stamped pressed steel rim and the bearing. The tyres have a hardness of 80 Shore A and provide a high level of operational comfort, good floor preservation and low-noise operation. In contrast to the VE wheel series, the V series is suitable for higher loads.
The V series is frequently used for manually operated transport units, as support wheels for trailers and in a wide range of small units.
