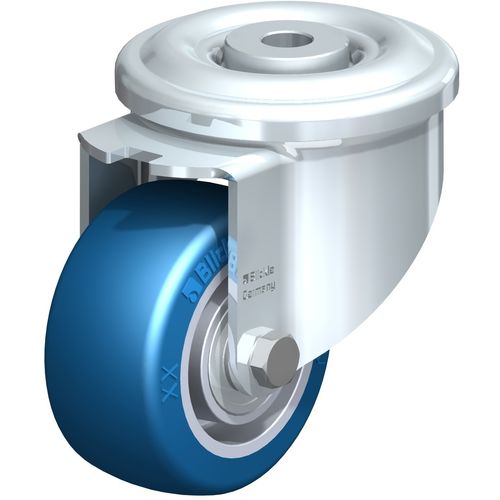

Swivel caster LKR-ALBS series
rodelasticnon-marking

Swivel caster - LKR-ALBS series - Blickle Räder+Rollen GmbH u. Co. KG - rod / elastic / non-marking
Swivel caster - LKR-ALBS series - Blickle Räder+Rollen GmbH u. Co. KG - rod / elastic / non-marking
Swivel caster - LKR-ALBS series - Blickle Räder+Rollen GmbH u. Co. KG - rod / elastic / non-marking - image - 2
Swivel caster - LKR-ALBS series - Blickle Räder+Rollen GmbH u. Co. KG - rod / elastic / non-marking - image - 3
Swivel caster - LKR-ALBS series - Blickle Räder+Rollen GmbH u. Co. KG - rod / elastic / non-marking - image - 4
Swivel caster - LKR-ALBS series - Blickle Räder+Rollen GmbH u. Co. KG - rod / elastic / non-marking - image - 5
Swivel caster - LKR-ALBS series - Blickle Räder+Rollen GmbH u. Co. KG - rod / elastic / non-marking - image - 6
Add to favorites
Compare this product

Characteristics

Type
swivel
Mount
rod
Other characteristics
non-marking, high load capacity, low-noise, shock absorbing, central hole fixing, elastic, polyurethane, pressed steel, aluminum
Load capacity

Min.: 230 kg
(507 lb)

Max.: 350 kg
(772 lb)

Wheel diameter

Min.: 80 mm
(3.15 in)

Max.: 125 mm
(4.921 in)

Tread width

40 mm
(1.57 in)

Description

The tread of the ALBS series consists of the high-quality polyurethane-elastomer Blickle Besthane® Soft. This is cast onto a wheel centre made of die-cast aluminium. The extra-thick and elastic tread has a hardness of 75 Shore A. It has a high dynamic load capacity and a particularly low level of rolling resistance. In addition to providing a very high level of operational comfort, the wheel series also offers particularly low noise levels and good floor preservation. The ALBS series is used for applications requiring excellent operational comfort on uneven surfaces. The series can also be used for high speed applications up to 16 km/h with a reduced load capacity. The POBS series is used in situation were hydrolysis resistance is an important factor.
