- Fixed caster
- Blickle Räder+Rollen GmbH u. Co. KG

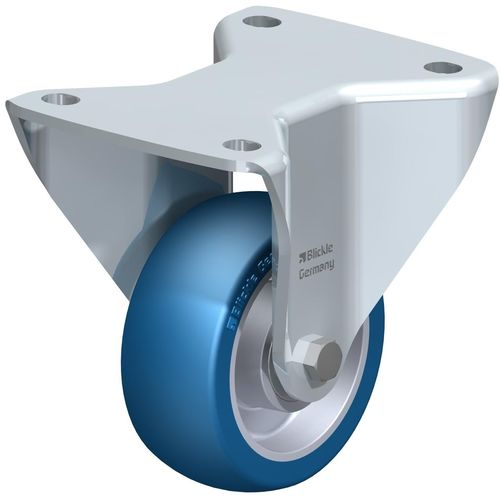

Fixed caster BH-ALBS seriesbase platehigh load capacitynon-marking
Add to favorites
Compare this product
Characteristics
- Type
- fixed
- Mount
- base plate
- Other characteristics
- high load capacity, non-marking, low-noise, elastic, shock absorbing, pressed steel, polyurethane, aluminum
- Load capacity
Max.: 700 kg
(1,543 lb)Min.: 450 kg
(992 lb)- Wheel diameter
Max.: 200 mm
(7.874 in)Min.: 125 mm
(4.921 in)- Tread width
Max.: 54 mm
(2.13 in)Min.: 50 mm
(1.97 in)
Description
The tread of the ALBS series consists of the high-quality polyurethane-elastomer Blickle Besthane® Soft. This is cast onto a wheel centre made of die-cast aluminium. The extra-thick and elastic tread has a hardness of 75 Shore A. It has a high dynamic load capacity and a particularly low level of rolling resistance. In addition to providing a very high level of operational comfort, the wheel series also offers particularly low noise levels and good floor preservation.
The ALBS series is used for applications requiring excellent operational comfort on uneven surfaces. The series can also be used for high speed applications up to 16 km/h with a reduced load capacity.
The POBS series is used in situation were hydrolysis resistance is an important factor.
