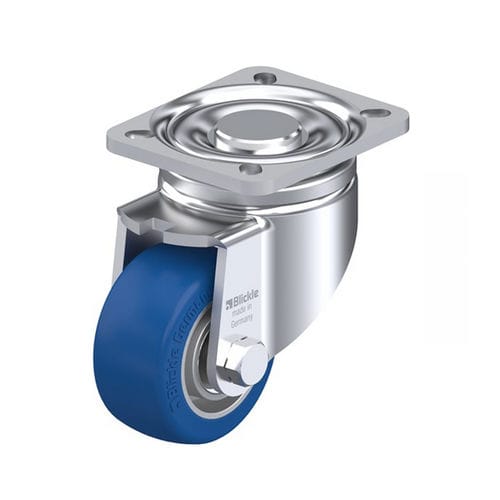

Swivel caster LH-ALBS seriesbase plateelasticnon-marking
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with ball bearing, non-marking, high load capacity, low-noise, shock absorbing, elastic, polyurethane, pressed steel, aluminum
- Load capacity
Min.: 230 kg
(507 lb)Max.: 800 kg
(1,764 lb)- Wheel diameter
Min.: 80 mm
(3.15 in)Max.: 250 mm
(9.843 in)- Tread width
Min.: 40 mm
(1.57 in)Max.: 54 mm
(2.13 in)
Description
The tread of the ALBS series consists of the high-quality polyurethane-elastomer Blickle Besthane® Soft. This is cast onto a wheel centre made of die-cast aluminium. The extra-thick and elastic tread has a hardness of 75 Shore A. It has a high dynamic load capacity and a particularly low level of rolling resistance. In addition to providing a very high level of operational comfort, the wheel series also offers particularly low noise levels and good floor preservation.
The ALBS series is used for applications requiring excellent operational comfort on uneven surfaces. The series can also be used for high speed applications up to 16 km/h with a reduced load capacity.
The POBS series is used in situation were hydrolysis resistance is an important factor.
