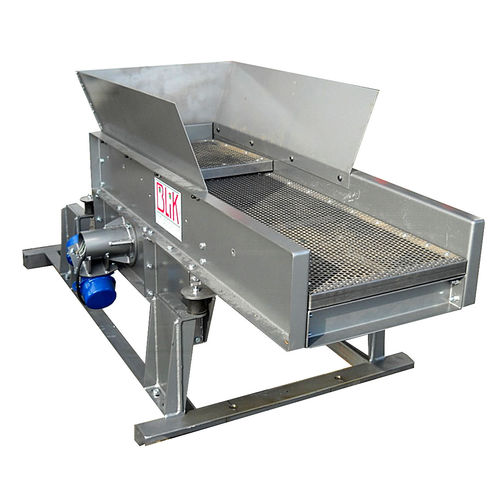

Sorting sieving machine TIBY 1500-500

vibratingfor bulk materials

The TIBY 1500-500 by Blik is a vibratory screener which can do all types of sorting application. The unit operates automatically which can separate different material in either two or more phase of different granulations. Plus, it can come with additional tool such as Blik crusher B600 and vibrating table. Effective width of the screen segment 420 mm Total length 1550 mm effective lenght of thre screen 880 mm Interchangeable screen segments Diameter of screen holes according to thr tries Motors 2 moteurs à balourd à masse réglable Angle of motors adjustable Power motors three phases 200W / 400V / 50Hz Outside dimensions (mm) without stand support width x depth x Height 1808 x 950 x 696 mm Debit Varies depending on product flow to be treated refusal sorting falls at the end of screen Weight (KG) approx 450 “CE” certified - 1 year guarantee (*) – Subject to technical and optical modifications Options Feed hopper; chassis standard support
