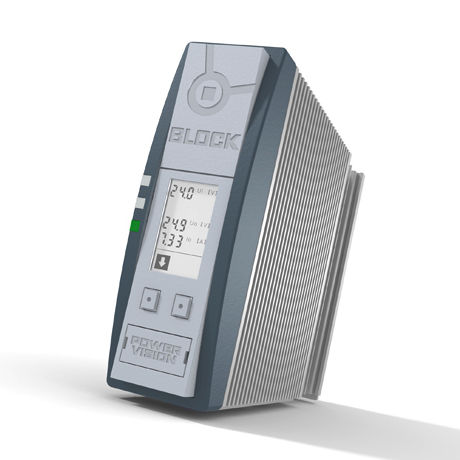

Off-line UPS PVUA series
DCindustrial

off-line UPS
off-line UPS
off-line UPS
Add to favorites
Compare this product

Characteristics

Type
off-line
Electrical characteristics
DC
Applications
industrial
Input voltage

Min.: 18 V

Max.: 29 V

Output voltage

24 V

Description

General Data Input rated voltage 24 Vdc Output rated voltage 24 Vdc Output rated current 10 ‑ 20 A Ambient temperature ‑25° C to +60° C Efficiency up to 97 % Protection index IP 20 Advantages Electronic overcurrent and short circuit protection Active current limiting in the event of an error Automatic detection of connected battery module Reliable early warning signal when battery life expectancy is declining Extended life expectancy through temperature controlled battery management Service‑friendly spring‑loaded connector system Isolated signal contact Reverse polarity protection Exhaustive discharge protection for batteries Interface to visualize and adjust relevant data Current and voltage monitoring Active signal outputs for watchdog functions RS‑232 interface Supports Industrial PCs
