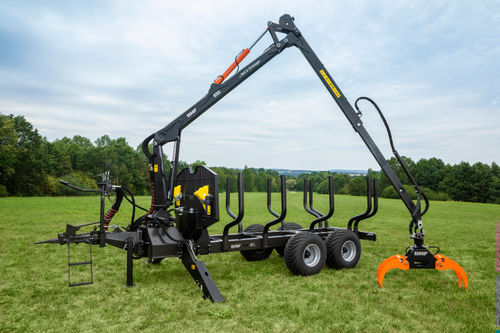

Trailer-mounted crane BMF 650boomforestrylifting
Add to favorites
Compare this product
Characteristics
- Configuration
- trailer-mounted
- Structure
- boom
- Operating environment
- forestry
- Applications
- lifting
- Other characteristics
- hydraulic
- Lift capacity
530 kg, 835 kg
(1,168.4 lb, 1,840.9 lb)- Working height
6.5 m
(21'03" )
Description
Timber crane with telescope, max reach 6,5m
Timber crane for your forestry. This crane comes with a telescope and a max, reach up to 6,5m. This crane is a high-performance machine featuring quality workmanship.
Expandable with our accessories range.
Product info:
Maximum reach, m6,5
Lifting torque, kNm, gross
46
Lifting power on 4m without grapple and rotator, kg835
Lifting power of full reach without grapple and rotator, kg530
Grapple, m20,2/0,21
Rotator3t/4t
Slewing torque, kNm10
Slewing cylinders, pcs4
Boom rotation, °360
Working pressure, bar 190
Hydraulic pump capacity, l/min30-60 l/min
Support leg A / FD
Wide angle +
Telescope +
Total weight without leg, kg686
Hydraulic valve, standard 6/8 XY
