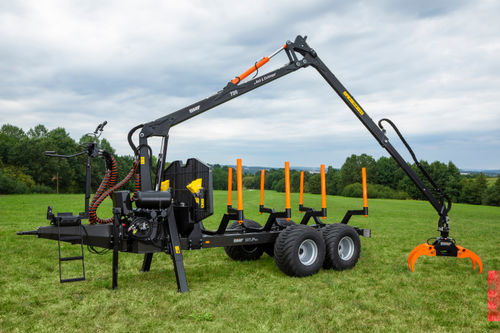

Timber crane with wide-angle joint and telescope, max. reach 7,2m
Our timber crane comes with wide-angle joint and telescope. The crane has a 7,2m max. reach and was designed for semi- and professional forestry.
Expandable with our extensive accessories range.
Product info:
Maximum reach, m7,2
Lifting torque, kNm, gross
57
Lifting power on 4m without grapple and rotator, kg1000
Lifting power of full reach without grapple and rotator, kg560
Grapple, m20,2/0,21/0,24
Rotator3t/4t
Slewing torque, kNm14,5
Slewing cylinders, pcs4
Boom rotation, °370
Working pressure, bar 190
Hydraulic pump capacity, l/min30-60 l/min
Support leg A / FD
Wide angle +
Telescope +
Total weight without leg, kg 710
Hydraulic valve, standard 6/8 XY
