Trailer-mounted crane BMF 750boomforestrylifting
Add to favorites
Compare this product
Characteristics
- Configuration
- trailer-mounted
- Structure
- boom
- Operating environment
- forestry
- Applications
- lifting
- Other characteristics
- hydraulic
- Load
615 kg, 1,420 kg
(1,355.8 lb, 3,130.6 lb)- Working height
7.5 m
(24'07" )
Description

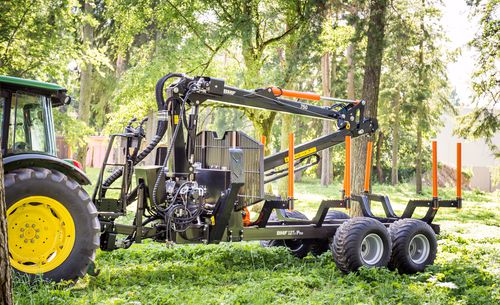

Forestry crane incl. wide angle joint, telescope and 7,5m max.reach
Forestry crane with three-point connection, wide angle joint and telescope. This crane has a total reach up to 7,5m.
Our forest machine comes with highest quality standards at a particularly favourable price-performance . We also provide a wide range of accessories.
Product info:
Maximum reach, m7,5
Lifting torque, kNm, gross
68
Lifting power on 4m without grapple and rotator, kg1420
Lifting power of full reach without grapple and rotator, kg615
Grapple, m20,24/0,27
Rotator4t
Slewing torque, kNm17
Slewing cylinders, pcs4
Boom rotation, °370
Working pressure, bar 190
Hydraulic pump capacity, l/min40-80 l/min
Support leg FD
Wide angle +
Telescope +
Total weight without leg, kg1025
Hydraulic valve, standardOn /Off 80 l
